Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller .Employed with thin metal plate and non-metal laser cutting techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.
System encryption and parameters storage on board, file storage capacity is up to 256M.
Customized boot screen, controller kernel program upgrade remotely
2-way digital/analog laser control interface
Dedicated RF laser control interface
At most 4-axis stepper/servo motor open/closed loop control
Soft/ hard limit coordinates protection for optional
Linear, circular arc and B Spline interpolation
Flexible dedicated LFS interface, supporting many manufactory’s LFS system
Support various metal cutting technology control
Metal and Non-metal Laser Cutting Controller ( RDC6332M)

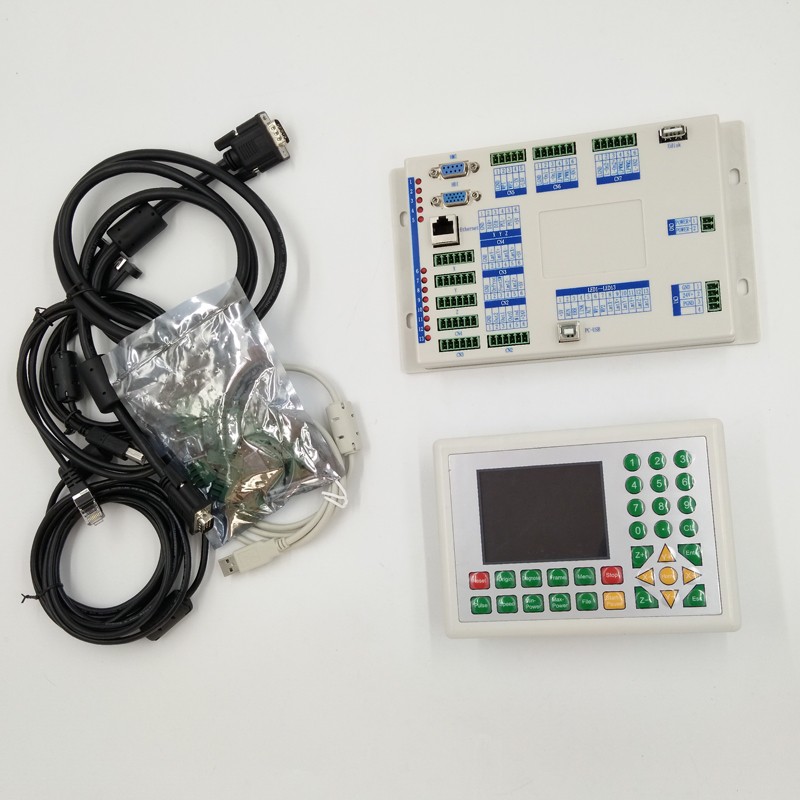

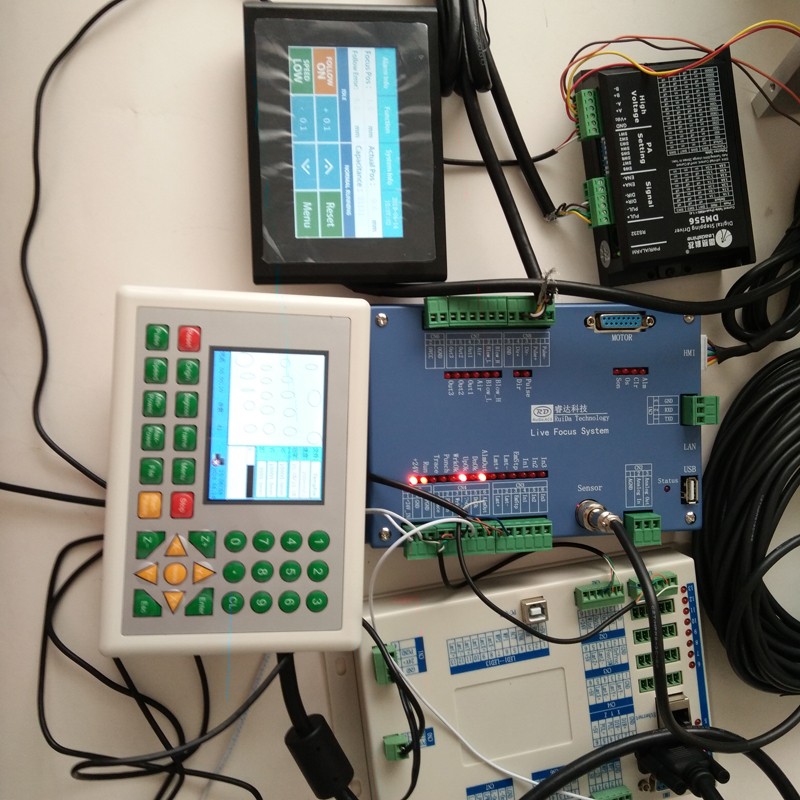

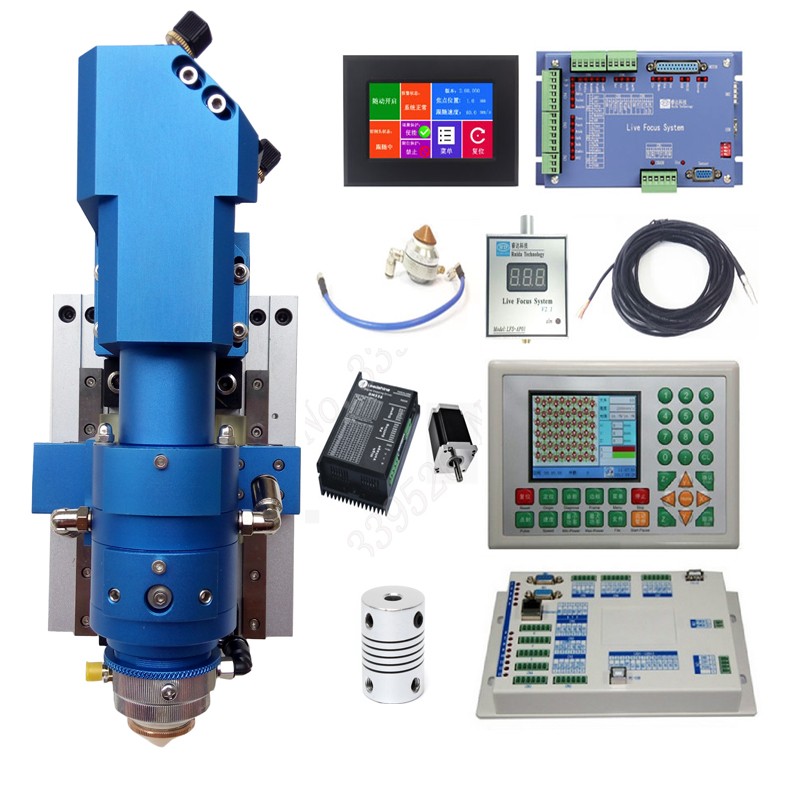

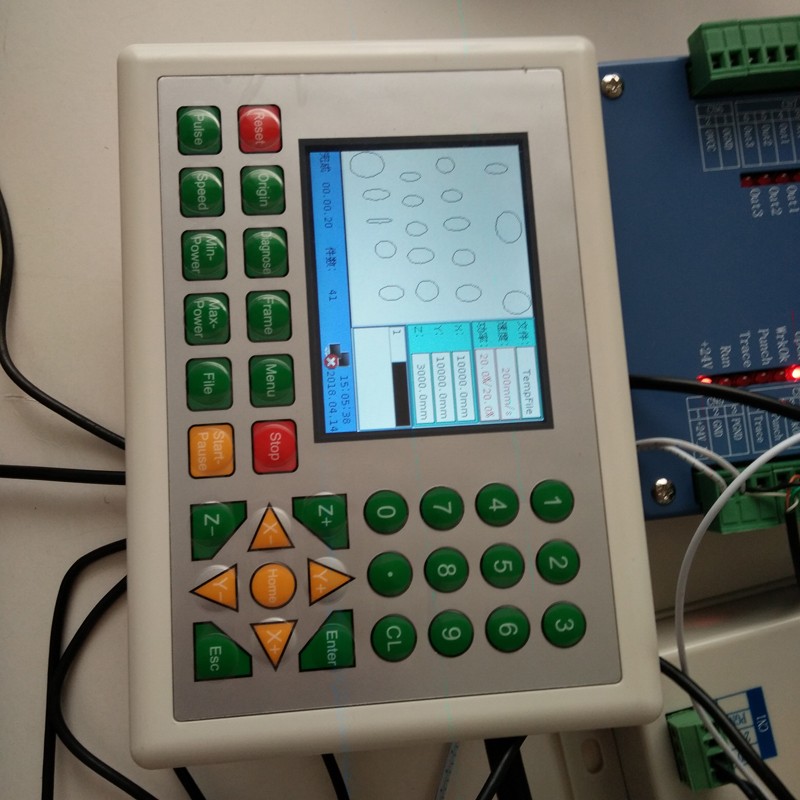

controller, display panel, shielded Ethernet cable, shielded USB cable, 3.81mm terminal
Main board Size:220mm * 134mm
Extension interface board size:170mm*120mm
Adaptive software: Metal Cut
Digital laser control signals, differential output, TTL level, up to 20mA driving capability
PWM frequency can be adjusted from 2.5KHz to 100KHz. PWM duty ratio is 1%~99%
Laser power control: analog voltage, 0~5V adjustable according to the motor control signal differential output, TTL level, 20mA driving capability, the max. motor control pulse frequency is 500KHZ.
The USB max. transmission speed is 12 Mbps, the longest distance is 5 meter.
4-way general photoelectric isolation OC gate output, the max .drive capability is 600mA.
Linear/ circular/B Spline interpolation precision: +/-0.5pulse
4-way general photoelectric isolation, TTL level
Application Area: Metal and non-metal laser cutting
Standard carton box package
