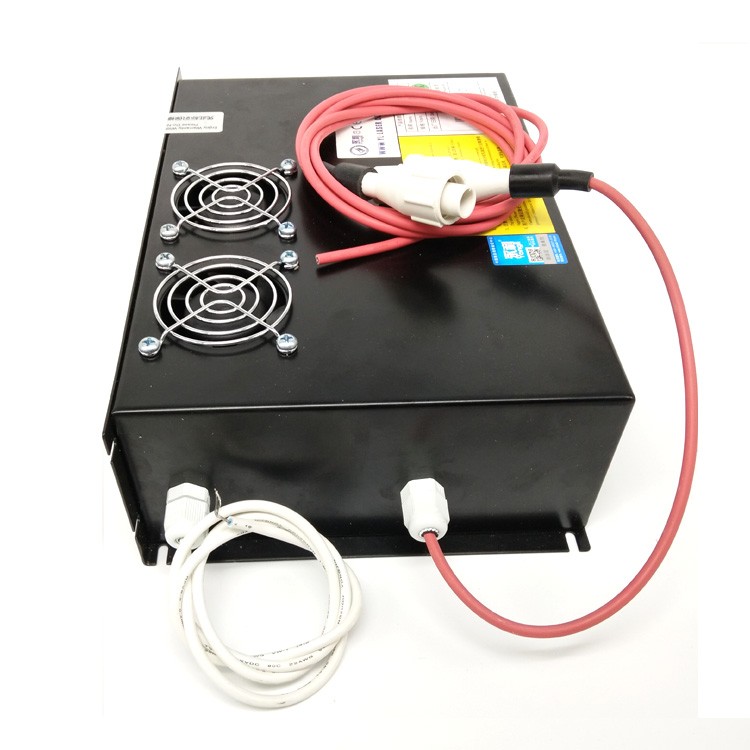

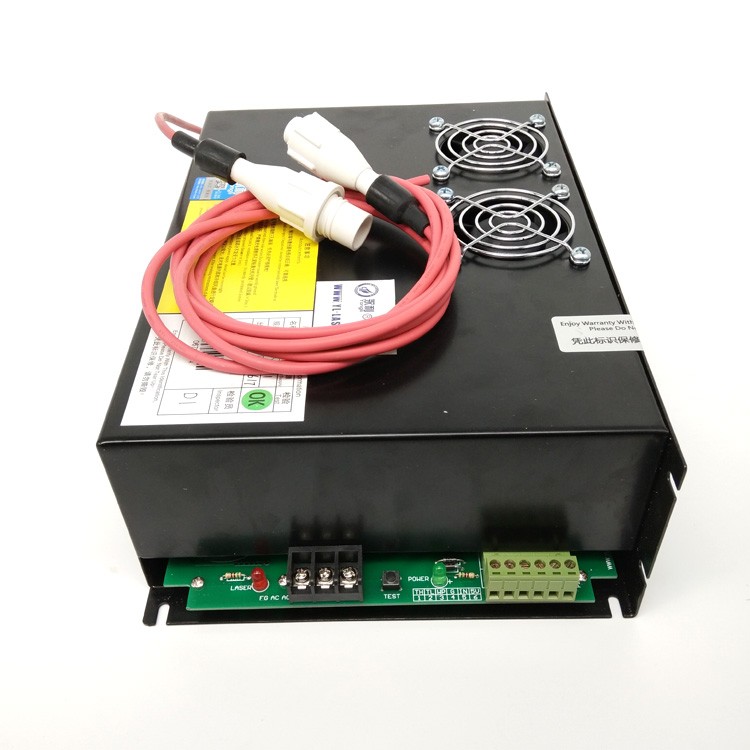

YL-U series was developed for Yongli ultra. They feature stable performance, strong anti-jamming capability, small size and anti-aging. Strongly recommend to use our ultra laser tube with our ultra power supply together to achieve the best effects.
1. Good compatibility : can adapt to different manufacturer co2 laser tube , Use with our laser tube will get better results
2. Dramatically lengthen the serving life of laser
3. Easy control :the start and stop of laser can be easily controlled by TTL level .And there are protection switch to test the external water , ventilation ,etc
4. Easy control of laser power :both 0-5v analog signal and PWM signal can control the laser power .
5. The power supply has the function of open circuit protection:under the condition of good protective earthing ,the power supply can work in open circuit condition for a short time , which could avoid the damage of laser power supply because of the bushing of laser tube , thereby enhancing the life of power supply
6. Application : co2 laser power supply are mainly applied in engraving &cutting ,laser marking machine and medical laser machine
1. Connection of laser tube
The high voltage (HV+) of the laser power supply shall be connected to the anode (full reflection terminal )of co2 laser tube . the current circuit of the laser power supply is connected to the cathode (laser output terminal) of co2 laser tube through an Ammeter (or directly )
2. connection of control signal
Control signal shall be reliably connected to control terminal of the power supply.
3. Input of control signal
After connecting the output signal and TTL signal of external computer with the power supply .the laser tube shall work as expected
Product parameter list：
Laser tube suggested
Stardand carton box
