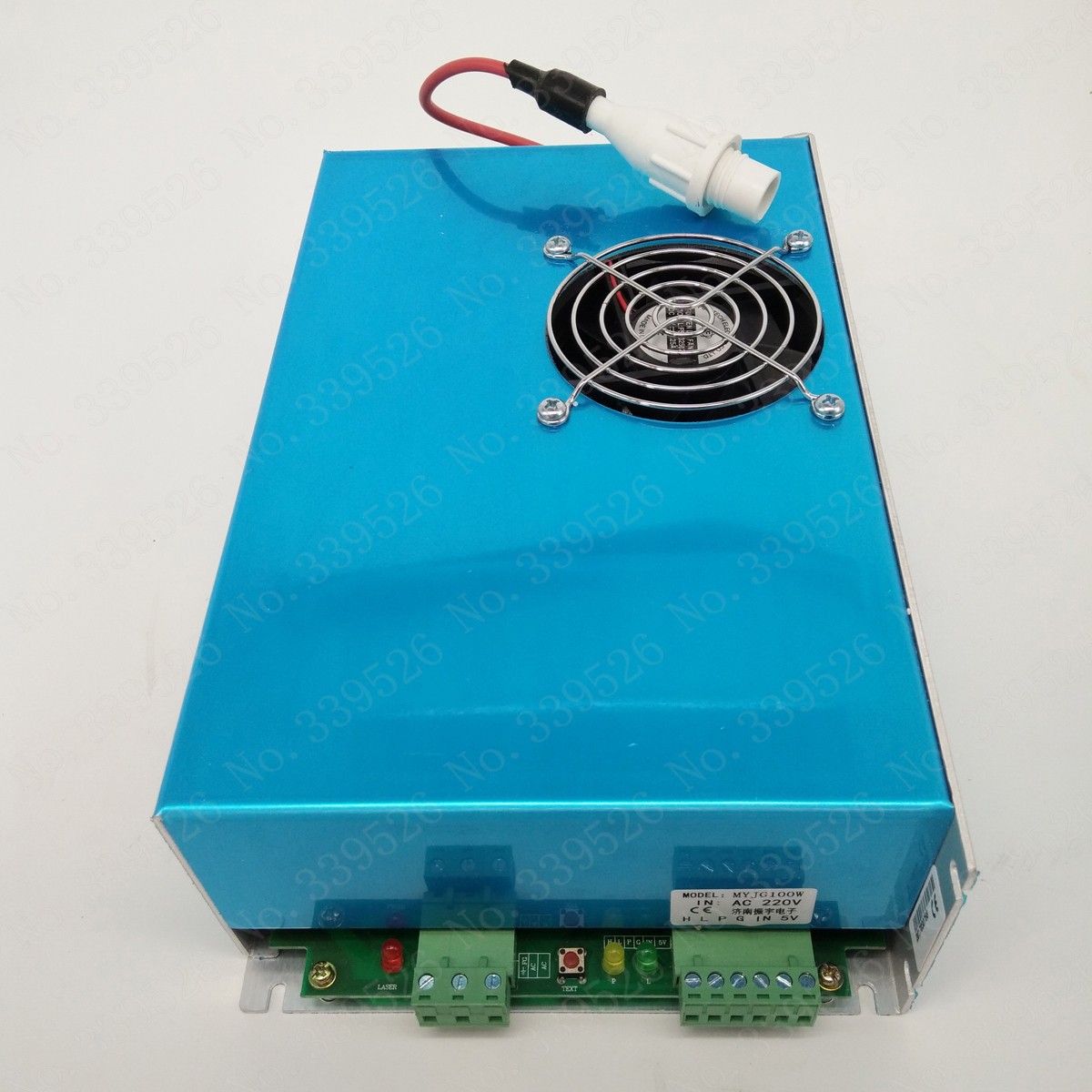

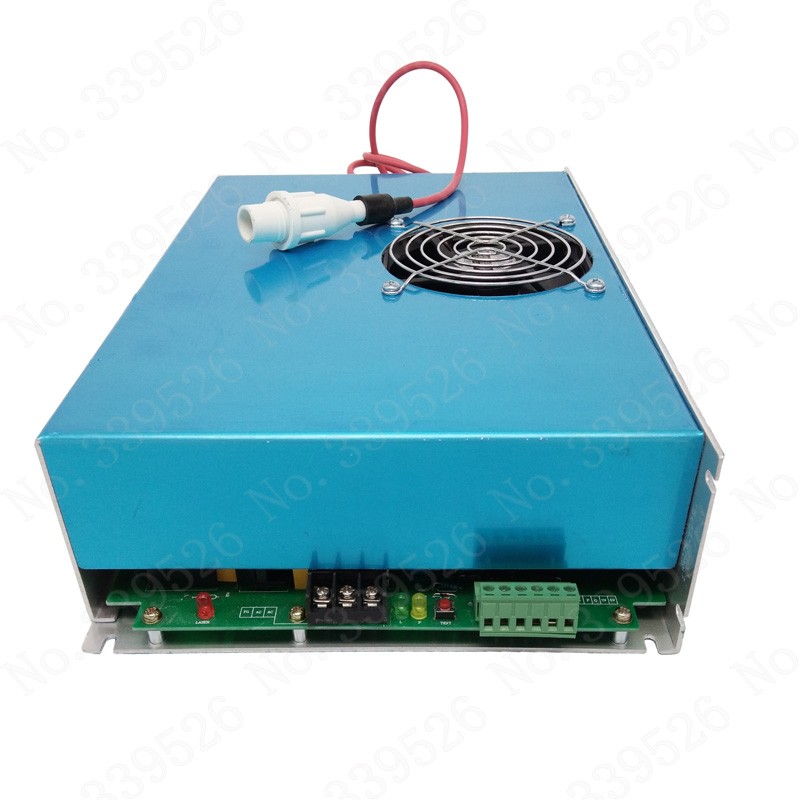

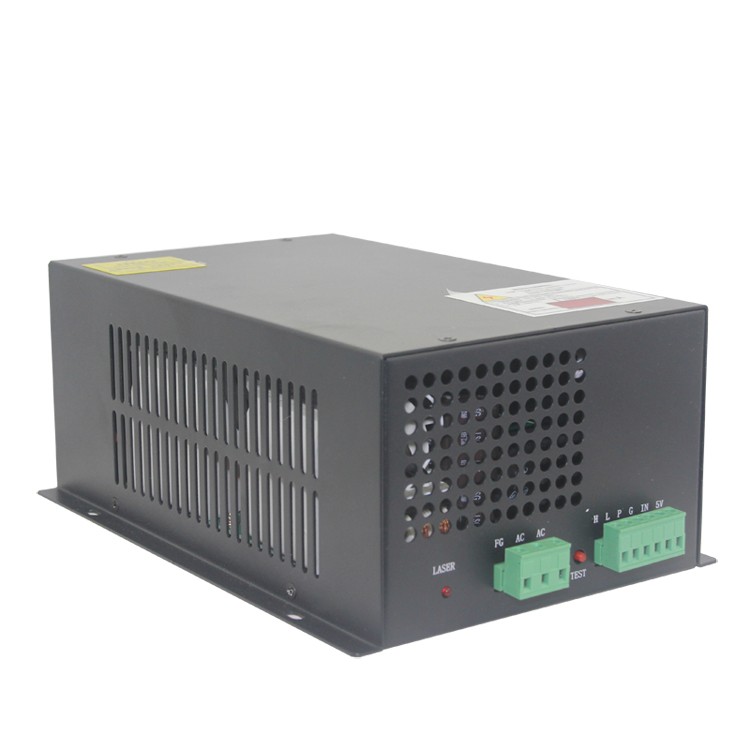

MYJG100W new CO2 laser power supply 100W with fault diagnosis, voltage regulator and LED display for CO2 laser tube

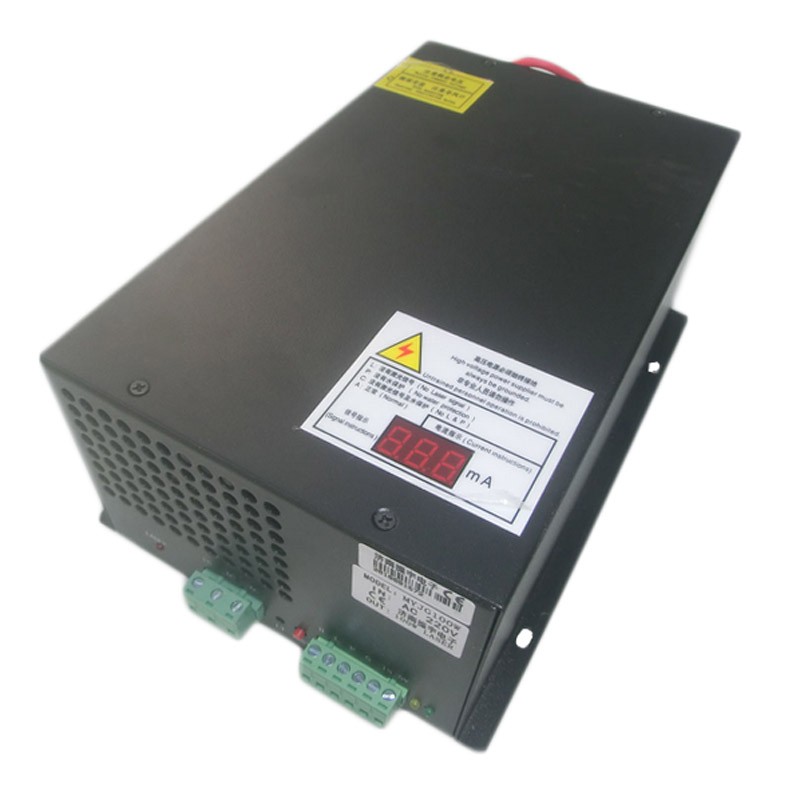

MYJG100W has a LED display, indication its signal instructions and current instructions, which helps the user with fault diagnosis.
With a inside voltage regulator, MYJG100 can automatically maintain a constant voltage level.
MYJG100W power supply for CO2 laser tube adopts zero-current half-bridge soft-switch circuit to ensure the equipment has the advantages of high efficiency and rapid response speed, applying to laser tubes from different factories.
Its simple control port is applicable to high/low level signal. TTL level is to control the on/off of the laser with an anomalistic protective switch to check water-flow and ventilation, etc.
Adjust the power: Input analog signal(0~5V) or PWM to control the output power.
Open power protection in the power supply has these functions: the power supply can work for a short time in the state of open circuit while the case touches the ground well so as to avoid damage to the power supply caused by the laser tube burst.
Ageing check before consignment:
Each power supply before selling will go through the aging check:
(1) sustain 10 hours at temperature 60 degrees Cencius under full-load condition;
(2) 500 times on/off check for 7 seconds.
Main Technical Data：
AC input voltage
AC220V or AC110V
DC input voltage
DC300V or DC150V
AC input frequency
30mA(according to laser tubes of different manufacturers)
130% of maximum current
Open circuit protection
Yes (short time)
High level control voltage range
Low level control voltage range
AC1500V1 min ≤10mA
AC1500V1 min ≤10mA
Earth leakage current
Amplitude 0.5mm frequency 10~55Hz three-dimensional direction 2h
Fault-free time MTBF
60?C high temperature test time on full load
7s power on/off test
Maximum size (L*W*H)
