Match for Yongli, EFR, RECI and other brand 80W 90W 100W 150W CO2 Laser tube.

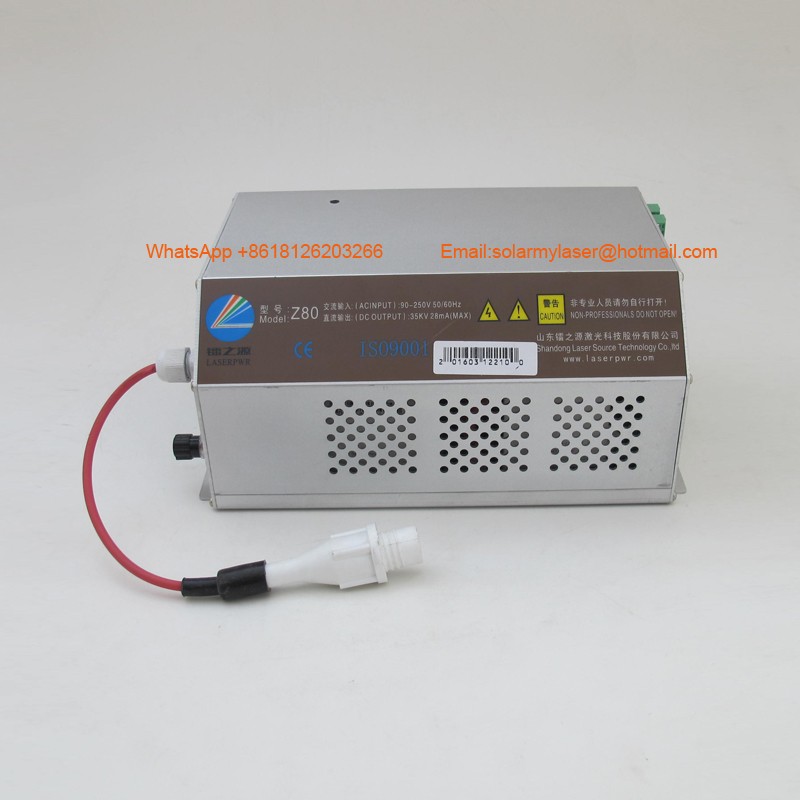

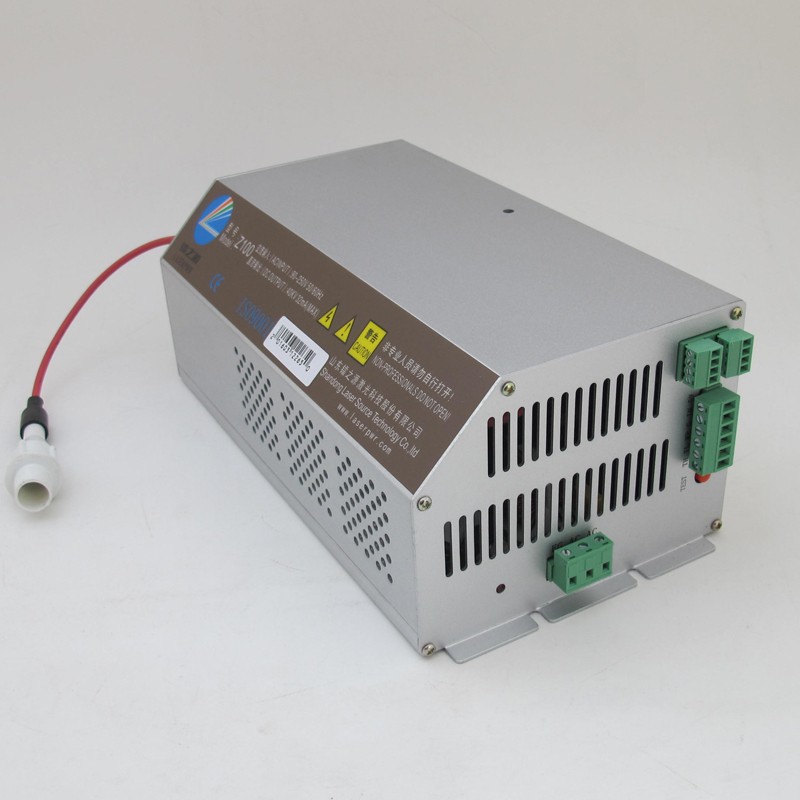

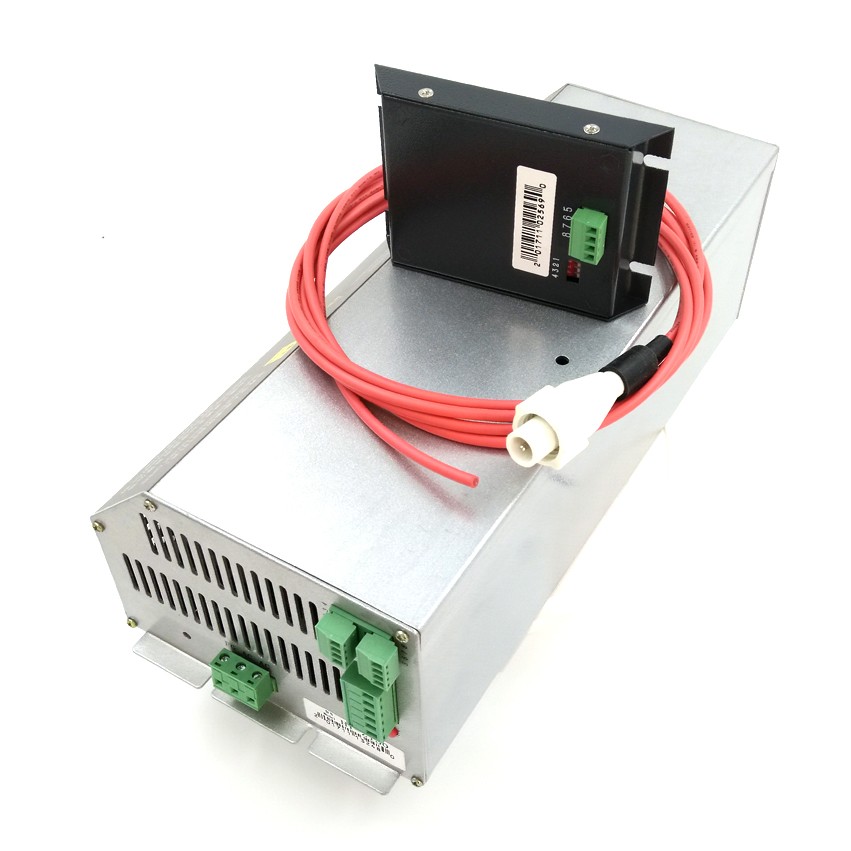

Z serial power supply main feature :
1 Higher security: the product comes with high-voltage discharge function, no residual voltage after shutdown, more secure,
Improved current control, more stable light, better compatibility, more compatible with most of the market lasers.
1. Unique design with several patents
2. High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
3. Make the maintenance much easier: User can judge the problem by himself.
4. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
5. Universal: with PFC function, AC90-250V input voltage range, globally universal.
6. Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.
7. More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.
8. Excellent cover with patent design: Good appearance, better heat dissipation.
9. Improved current control mode, more stable laser, better compatibility.
Max input power
Max input current
Max output voltage
Max output current
MTBF(mean time between failure)
≤1mS (the time from the signal is given to output current
reaches 90% of set current)
Input-output, input-shell:AC1500V 10mA 60s:
Temperature(-10~40)°C , relative humidity:≤90%
Force Air cooling
