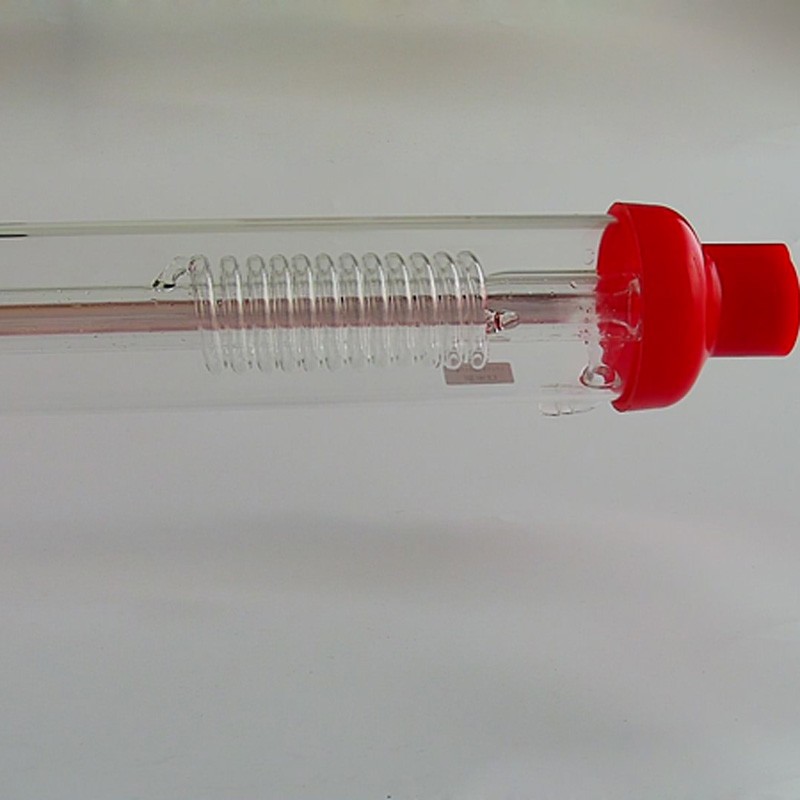

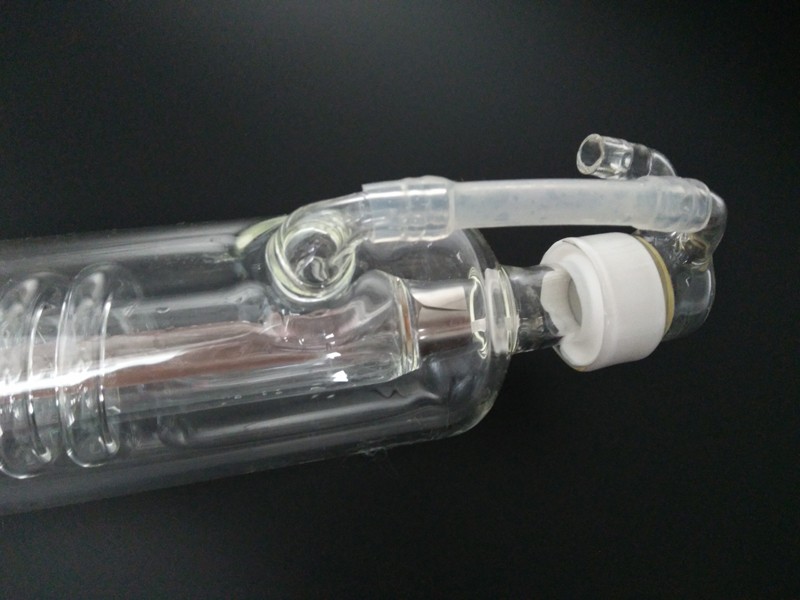

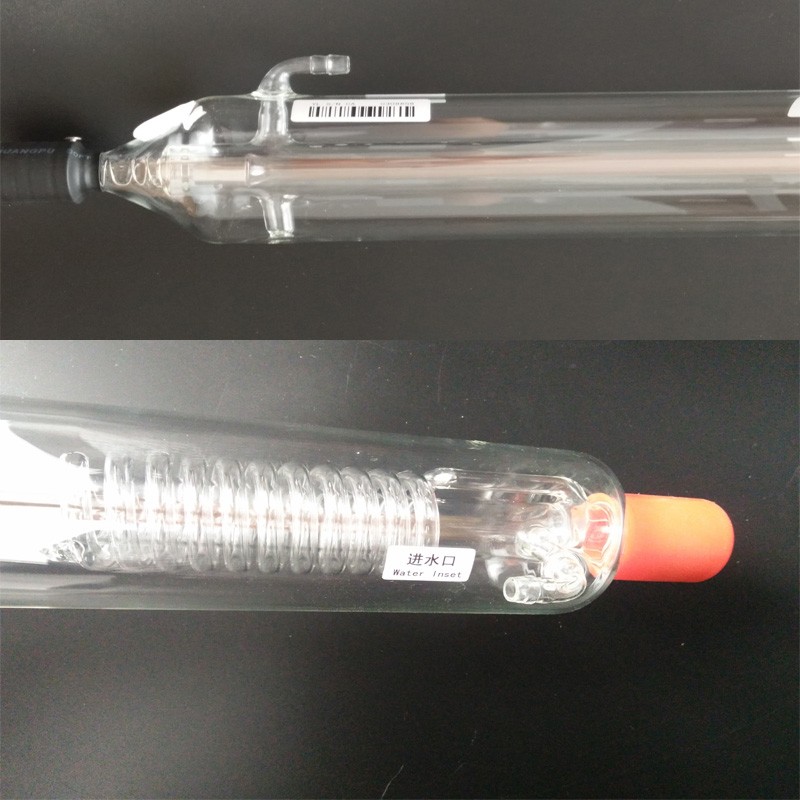

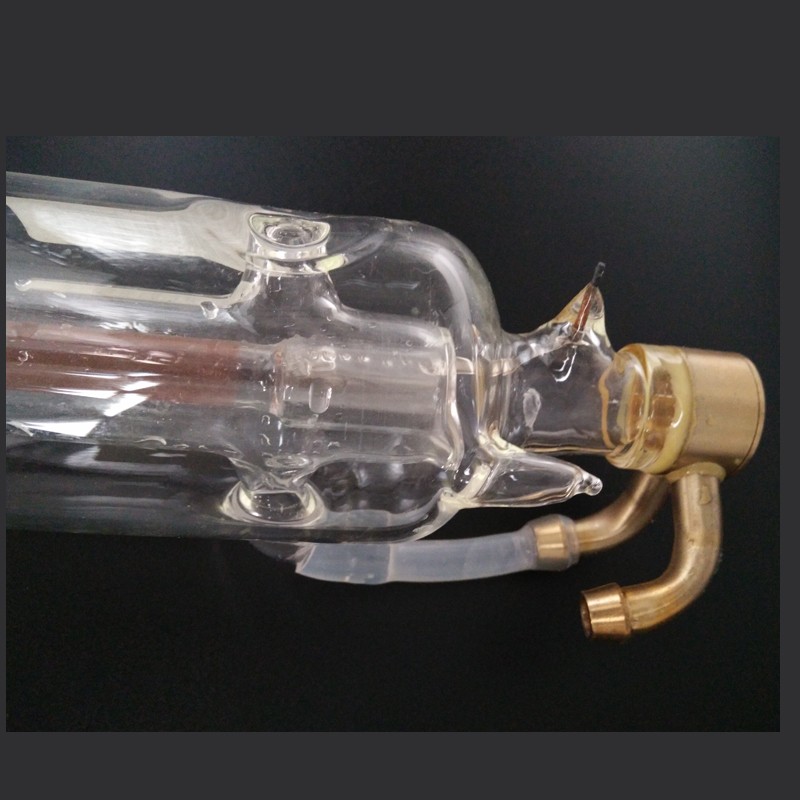

Yongli brand tube 65w .80w 90w 100w 130w

Conventional SeriesOur traditional products feature with cost-effective,mature stable technology, stable output power, and good spot mode. They have been recognized by the majority of customers and ha

  • Model: 1200-G,1600-G,R3, R5 R7 R9 . A2S ,A4S, A6S, A8S

Conventional Series

Our traditional products feature with cost-effective,mature stable technology, stable output power, and good spot mode. They have been recognized by the majority of customers and have been supplied to numbers of large laser machine manufacturers and exported to the world.

Product parameter list

Model

Rated power (w)

Maximum power (w)

Outside diameter mm

Catalyst

Application scope

Warranty  (months)

1200-G

65

72

Φ50±2

Yes

Carving/cutting

6

1600-G

100

110

Φ60±2

Yes

Carving /cutting

6


Q serial

This series product is up-graded about processing and technology based on traditional products. The power increases 20% and life longer 30-100%. Better cost-effective makes it widely used by the market.

R Series Product parameter list



Model Lengthmm Rated powerW Maximum powerW Outside diametermm Catalyst Application scope Warranty(month)

R1 1050 60 70Yes

Engraving/Cuting

6

Model

Length (mm)

Rated power (w)

Maximum power (w)

Outside diameter(mm)

Catalyst

Application scope

Warranty(months)

R3

1250

80

90

Φ80±2

Yes

Engraving/Cutting

10

R5

1450

100

110

Φ80±2

Yes

Engraving/Cutting

10

R7

1650

130

140

Φ80±2

Yes

Cutting

10

R9

1850

140

150

Φ80±2

Yes

Cutting

10


A serial

A series is our new patent products with better spot, power and life thanks for imported lens from -company, advanced production processing and catalytic reduction technology coating, which are praised at home and abroad customers. A6S & A8 laser tube features with international new catalyst technology improved coating firmness and catalytic reduction capabilitygas filled, exhaust process improving promise the gas purity in the chamber, which extend the life of the laser tube. At the same time, the laser beam waist adjusting, promise the beam quality meet quasi-monomode, which makes A6S & A8 laser tube more suitable to cut thin metal and thick non-metal plate

Parameter list:

Mode

Length (mm)

Rated power (w)

Maximum power (w)

Outside diameter(mm)

Catalyst

Application  scope

Warranty (months)

A2s

1250

90

100

Ф80±2

Yes

Engraving/ cutting

12

A4s

1450

100

130

Ф80±2

Yes

Engraving /cutting

12

A6s

1650

130

160

Ф80±2

Yes

Engraving /cutting

12

A8s

1850

150

180

Ф80±2

Yes

Engraving /cutting

12


1.Co2 laser glass tube -Catalyst

Model

Length (mm)

Power (W)

Diameter(mm)

Warranty (months)

1200-G

1200

60-70

Φ55

6

1600-G

1600

80-100

Φ60

4



2、Co2 laser glass tube -R serial

Model

Length (mm)

Power (W)

Diameter (mm)

Warranty (months)

R3

1250

80-90

Φ80

10

R5

1450

100-110

Φ80

10

R7

1650

130-140

Φ80

10

R9

1850

140-150

Φ80

10



3、Co2 laser glass tube -As serial

Model

Length (mm)

Power (W)

Diameter (mm)

Warranty  (months)

A2S

1250

90-110

Φ80

12

A4S

1450

110-130

Φ80

12

A6S

1650

130-160

Φ80

12

A8S

1850

150-180

Φ80

12

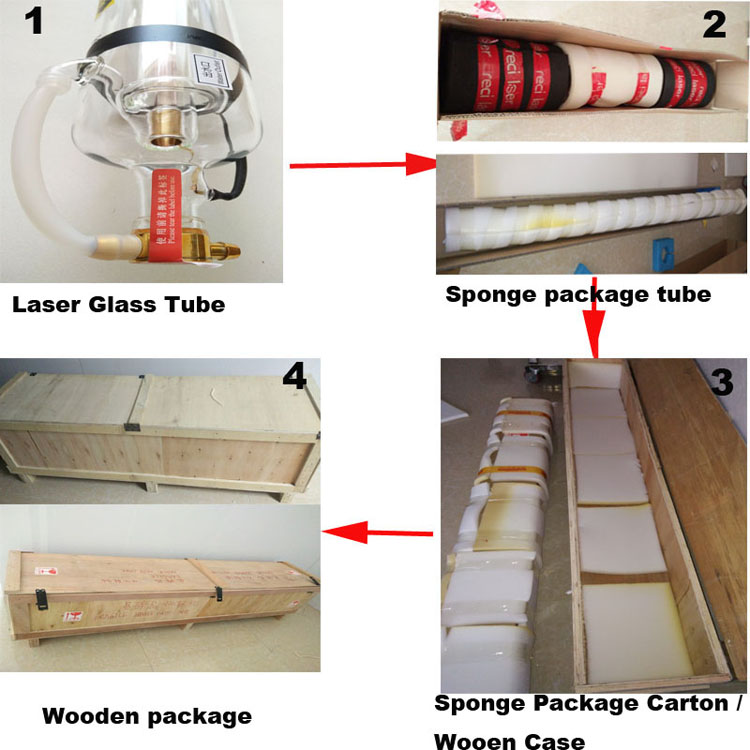

tube package.jpg
