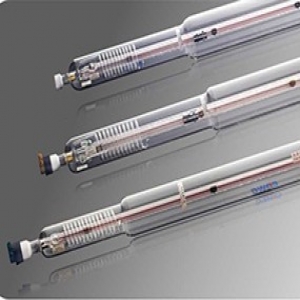

Weegaint .weeson chengdu co2 laser glass tube

 Series 8 CO? Laser Tubes For IndustryLife span: over 10,000 hours;warranty period:300 daysFeatures of series 8A.Unique shape structure design with 5 layers.Broken the traditional design mod

  • Model: 7 Serial, 8 serial



Series 8 CO? Laser Tubes For Industry

Life span: over 10,000 hours;warranty period:300 days

Features of series 8

A.Unique shape structure design with 5 layers.Broken the traditional design modes,the output power will be not affected due to the higher water temperature even if it's up to 50~60℃
B.Unique design at the cathode,assures the long life time in various environments.
C.With unique double metal rings design. it makes the beam quality more stable and improves the machining and cutting speed remarkably.
D.The special anti-dust design protects the lens of output side effectively in bad working environments,which makes the life time longer.
E.With many national-level patents.tubes'quality is perfect with hign cost-performance.



Products Direction:
1.Types in the catalogue is only partial,for more types,please inquiry us,and we also can make the tubes as customers requirement specially.
2.Tolerance of outer diameter is ±2mm.
3.In order to a long-life use,the current should be controlled under 26mA and the maximum iperating current should not exceed 30mA.
4.We reserve the rights to modify the catalogue without notice previously,please inquiry us directly for update information.







Series 7 co2 Laser Tubes For Industry

Life span: over 10,000 hours;warranty period:300 days



Features of series 7

A.Tubes'body with outer diameter 80mm in the middle,and 60mm at two end sides,special different diameters shape design makes the tube stronger and not easy to be broken.
B.Unique design at the cathode,assures the long life time in various environments.
C.Special product structures make the beam more stable,and the machining and cutting speed notably.
D.The special anti-dust design protects the lens of output side effectively in bad working environments.
E.Hign cost-performance.





Products Direction:
1.Types in the catalogue is only partial,for more types,please inquiry us,and we also can make the tubes as customers requirement specially.
2.Tolerance of outer diameter is ±2mm.
3.In order to a long-life use,the current should be controlled under 26mA and the maximum iperating current should not exceed 30mA.
4.We reserve the rights to modify the catalogue without notice previously,please inquiry us directly for update information.



Universal Tubes For Industry



*Remarks:
1.Here the rated power is the lowest standard before delivery,we assure the power of each tube is not lower than the rated power.
2.Y/N**:The core tube can be made in coating or without coating according to customer requirement.
3.We can make the tubes as customers requirement specially.





☆Features☆

Universal tubes from Chengdu Weegiant,are widely used in home and abroad due to the stable output power and good spot mode,achieved positive confirmation and good reputation from customers,as weel the cost-effective and more stable performance.





☆Products Direction:☆
1.Types in the catalogue is only partial,for more types,please inquiry us,and we also can make the tubes as customers requirement specially.
2.Tolerance of outer diameter is ±2mm.
3.We reserve the rights to modify the catalogue without notice previously,please inquiry us directly for update information.



Medical Co2 Laser Tubes



*Remarks:
1.Here the rated power is the lowest standard before delivery,we assure the power of each tube is not lower than the rated power.
2.Y/N**:The core tube can be made in coating or without coating according to customer requirement.





☆Features☆

Originally tubes in Chengdu Weegiant are from the design and production of medical CO2 laser tubes,with the abundant experience for 40 years,the products are stable.Also we can produce various tubes according to customers requirements,such as catalyst or not low current tubes.





☆Products Direction:☆
1.Types in the catalogue is only partial,for more types,please inquiry us,and we also can make the tubes as customers requirement specially.
2.Tolerance of outer diameter is ±2mm,and the length tolerance is ±20mm.
3.We reserve the rights to modify the catalogue without notice previously,please inquiry us directly for update information.




Series 8 CO? Laser Tubes For Industry

Product parameters

Type

Full Length(mm)

Rated Power(w)*

Max Power(w)*

Outer Diameter(mm)

Catalyst

Testing Current(mA)

Instability(%)

1800Q8

1850±30

160

190

110/80/60

YES

30

≤5

2000A8

2050±30

180

210

110/80/60

YES

30

≤5

2200V8

2250±30

200

230

110/80/60

YES

30

≤5

Series 7 co2 Laser Tubes For Industry

Product parameters

Type

Full Length(mm)

Rated Power(w)*

Max Power(w)*

Outer Diameter(mm)

Catalyst

Testing Current(mA)

Instability(%)

1250 T7

1250±20

90

100

80/60

YES

30

≤5

1400 T7

1450±20

100

110

80/60

YES

30

≤5

1600 S7

1600±20

120

130

80/60

YES

30

≤5

1600 F7

1650±30

130

150

80/60

YES

30

≤5

1700 H7

1750±30

140

160

80/60

YES

30

≤5

1800 U7

1850±30

150

180

80/60

YES

30

≤5

Universal Tubes For Industry

Product Parameter☆

Type

Full Length(mm)

Rated Power(w)*

Outer Diameter(mm)

Catalyst

Testing Current(mA)

Instability(%)

--

720

≥35

54

Y/N**

≤18

≤±5

--

1000

≥50

54

Y/N**

≤22

≤±5

R6

1250

≥70

60

Y

≤25

≤±5

P6

1400

≥80

60

Y

≤25

≤±5

R6

1600

≥90

60

Y

≤25

≤±5

P6

1600

≥100

60

Y

≤30

≤±5

S6

1600

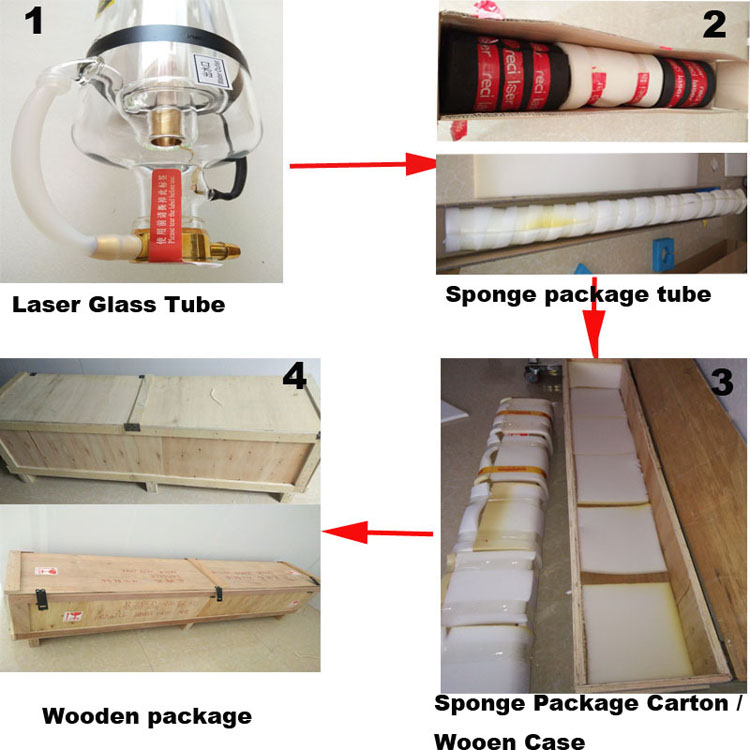

tube package.jpg
